Direct Jump (Kyoti)

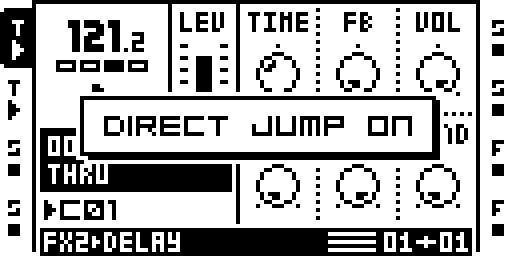

DIRECT JUMP toggled with PTN + YES.
An immediate pattern change. A cued pattern takes over on the next step, locked to the master clock: it plays where it would be had it been running since START, whatever its track lengths, scales or master settings.
Operation
Toggle with [PTN] + [YES]. OFF at every power-on.
Not the same module as DIRECT JUMP (CHAIN AFTER: DIRECT). Both change when a cued pattern takes over, and they have not been run in one image: take one per remix.
Status: on hardware: the author's MKI, 27-28 Sep 2026 (standalone 140C_KDJ7 and the KYOTI V1.0 combined image) and 1 Oct 2026 from DRAM (an octabam image with all six KYOTI modules); Program Change re-cues, MIDI tracks, START SILENT and the trig-condition reset emulator-verified.
Module facts (developers)
Clock-locked DIRECT JUMP ([PTN]+[YES]): a cued pattern lands on the next step exactly where it would be had it played since START.
| Detail | Value |
|---|---|
| Author | Zac-Kyoti/octatrack-kyoti-fw |
| Category | Machines and the sequencer |
| Kind | cf_patch |
| Test status | on hardware: the author's MKI, 27-28 Sep 2026 (standalone 140C_KDJ7 and the KYOTI V1.0 combined image) and 1 Oct 2026 from DRAM (an octabam image with all six KYOTI modules); Program Change re-cues, MIDI tracks, START SILENT and the trig-condition reset emulator-verified |
| Requires | BATCH_BUGFIXES |
| Conflicts | DIRECT JUMP — both change when a cued pattern takes over (CHAIN AFTER = DIRECT vs [PTN]+[YES]); never tested together -- take one |
| Included in | octabam-bus, octabam-core, octabam-inserts |
On GitHub: https://github.com/sambanks/octabam/blob/main/modules/direct-jump-kyoti/README.md
