Send

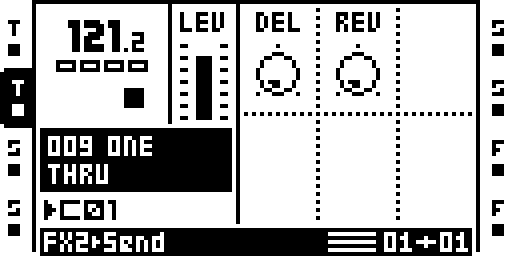

Send: main parameter page.
The bus client: two knobs that send this track to the two engines. DEL is this track's level into the delay (track 1), REV its level into the reverb (track 5). Each engine's wet comes out on the track that hosts it. DEL 0 and REV 0 is indistinguishable from no effect.
Open Send
On every track except 1, 5 and 8, FX2 is SEND (a new part is born that way; the FX2 chooser cannot change it). Page 1 has the two knobs.
Set the Sends
- Raise DEL to hear the track in the delay's repeats; raise REV for the reverb tail.
- The reverb also hears the delay's repeats through the reverb's DLY knob (TEMPO window): with DLY up, a delayed signal washes into the tail.
- Track 1's and track 5's FX2 pages draw these same two knobs, and nothing else: DEL feeds the delay, REV feeds the reverb.
- The delay follows the project tempo; its TIME knob sticky-snaps to tempo divisions.
Parameters
| Knob | Range | Default | Function |
|---|---|---|---|
| DEL | 0–127 | 0 | this track's level into the delay |
| REV | 0–127 | 0 | this track's level into the reverb |
Screen Reference

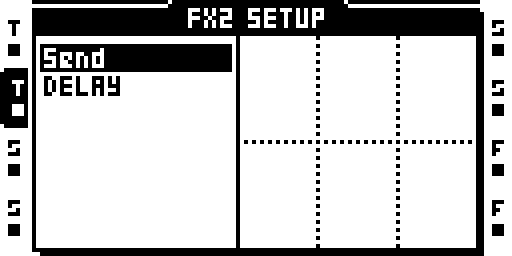

SEND: effect selection and setup parameters.
Status: on hardware: Sam's MKII.
Module facts (developers)
Bus client: DEL into the delay, REV into the reverb, from any track. The default effect.
| Detail | Value |
|---|---|
| Author | sambanks |
| Category | Effects: the bus |
| Kind | dsp_client |
| Test status | on hardware: Sam's MKII |
| FX2 ID | 0x09 |
| Parameters | DEL@0, REV@1 |
| Included in | octabam-bus |
