Transient

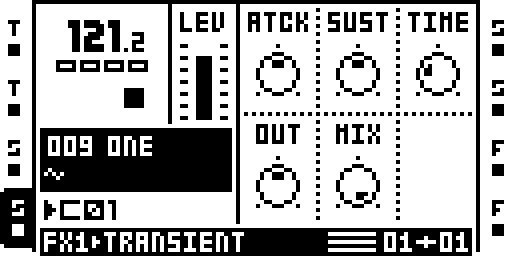

Transient: main parameter page.
A transient shaper. ATCK boosts or softens each onset; SUST lengthens or tightens each tail. No threshold: a quiet hit and a loud one are shaped the same, because the detector reads the shape of the envelope, not its level.
Access
An effect on a track: select the track, press FX2, and pick TRANSIENT from the chooser. Five knobs on page 1. In Octabam Inserts only.
Operation
- ATCK up: more punch on drums and plucks. Down: soften the onset.
- SUST up: more room and ring. Down: dry a loop out.
- TIME sets how long an onset counts as the transient: 5 ms at 0, 50 ms at 127 (logarithmic).
- OUT trims the output; MIX 0 is an exact passthrough, 127 full wet.
Parameters
| Knob | Range | Default | What it does |
|---|---|---|---|
| ATCK | -64..+63 | 0 | onset gain: +63 is +12 dB, -64 is -12 dB |
| SUST | -64..+63 | 0 | tail gain: +63 is +12 dB, -64 is -12 dB |
| TIME | 0..127 | 40 | how long an onset counts as the transient (5–50 ms) |
| OUT | -64..+63 | 0 | output trim, -12 to +12 dB |
| MIX | 0..127 | 0 | dry/wet; 0 is an exact passthrough, 127 full wet |
Screen Reference

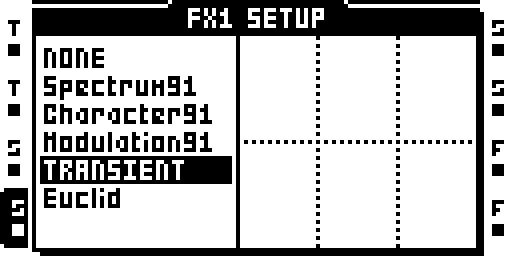

Transient: effect selection and setup parameters.
Status: on hardware: Ignorato's MKII, images OCTABAM2 and OCTABAM3 (remix transient), 3 Oct 2026.
Module facts (developers)
Transient shaper: ATCK and SUST reshape onsets and tails, level-independent.
| Detail | Value |
|---|---|
| Author | Ignorato |
| Category | Effects: on a track |
| Kind | dsp_effect |
| Test status | on hardware: Ignorato's MKII, images OCTABAM2 and OCTABAM3 (remix transient), 3 Oct 2026 |
| FX2 ID | 0x0f |
| Parameters | ATCK@0, SUST@1, TIME@2, OUT@3, MIX@4 |
| Included in | octabam-inserts |
On GitHub: https://github.com/sambanks/octabam/blob/main/modules/transient/README.md
