Gate Verb

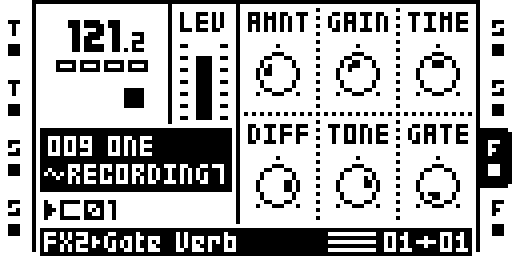

Gate verb: main parameter page.
A gated reverb: a dense reverb wash that cuts off sharply when the input falls quiet, instead of decaying. The reverb is the reverb stage of Mutable Instruments Clouds; the gate is new. Dry stays dry.
Access
An effect on a track: select the track, press FX2, and pick GATE VERB from the chooser. In Octabam Inserts only.
Operation
For the classic 1980s gated sound: TIME and DIFF high, GAIN up, AMNT up, then raise GATE until the wash cuts the way you want.
GATE 0 is a normal (ungated) reverb. Above 0, the wet holds while the input is loud; when it falls quiet, the wet holds for 52 ms (GATE 1) to 784 ms (GATE 127) and then closes over about 3 ms. Only the wet is gated: the tail keeps ringing underneath, so the next hit reopens it.
Parameters
| Knob | Default | What it does |
|---|---|---|
| AMNT | 40 | dry/wet. 0 is fully dry; up mixes in the reverb |
| GAIN | 51 | level into the reverb |
| TIME | 64 | how long the tail rings (0.35 to 0.98 loop gain) |
| DIFF | 100 | how smeared the tail is |
| TONE | 90 | damping: up is more damping, a darker tail |
| GATE | 0 | 0 is off. Up: after the input falls quiet, hold the wet for 52–784 ms, then cut it sharply |
Screen Reference

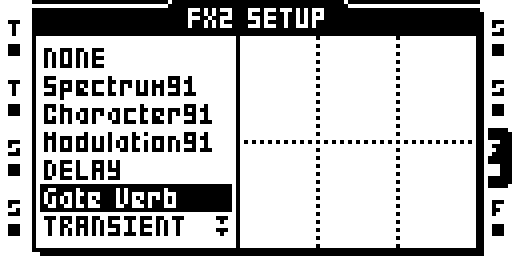

Gateverb: effect selection and setup parameters.
Status: on hardware: cursory testing on Sam's MKII (owner report, 16 Oct 2026); verify_gateverb (dsp_host, against a float model of Clouds' reverb).
Module facts (developers)
A gated plate reverb (Griesinger topology, after the reverb stage of Mutable Instruments Clouds): amount, input gain, time, diffusion, tone, gate. One FX2 slot per instance.
| Detail | Value |
|---|---|
| Author | Emilie Gillet (Mutable Instruments), ported here |
| Category | Effects: on a track |
| Kind | dsp_effect |
| Test status | on hardware: cursory testing on Sam's MKII (owner report, 16 Oct 2026); verify_gateverb (dsp_host, against a float model of Clouds' reverb) |
| FX2 ID | 0x14 |
| Parameters | AMNT@0, GAIN@1, TIME@2, DIFF@3, TONE@4, GATE@5 |
| Included in | octabam-inserts |
On GitHub: https://github.com/sambanks/octabam/blob/main/modules/gateverb/README.md
